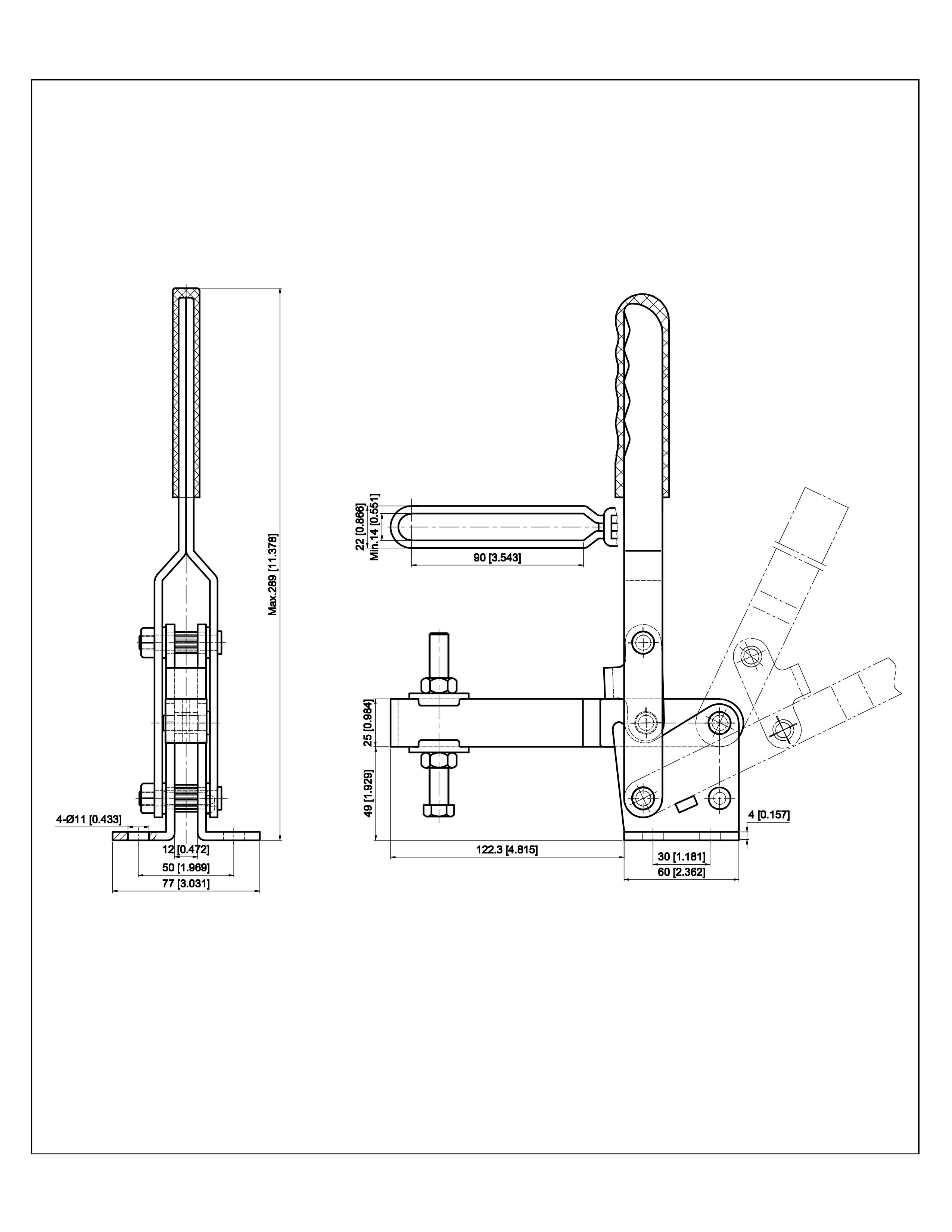

600lbs Holding Capacity Vertical Handle Toggle Clamp Used for Fixing Bolts GH-14412
Manual Quick Release Flanged Base Vertical Hold Down Toggle Clamp GH-14412
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture, woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 1140 | 300 | 140 | 67 | GH-SA-109015 |
Automobile Industry
1. Welding of various car seats is used as positioning bolts and fixtures for welding fittings. Main application models: 14412,11412,12265,102-B,36020,303-E etc.
2. The production of molded foams for luxury car seats is used as fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
3. The production of various automobile (motorcycle) mufflers is used as fixtures for welding jigs.
Main application models: 11412,10247,12305,22175,25382,36020,303-E,305-H etc.
4. The production of various automobile (motorcycle) carburetors is used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
5. The production of various automobile (motorcycle) wiring harness and electrical appliances is used as fixtures for testing jigs. Some of them are also used for assembling fixtures during assembly. Main application models: 201,201-A,201-B,101-A etc.
6. Production of various automobile steering wheels:
1) used as fixtures for welding jigs. Main application models: 201,201-A,201-B,101-B.
2) used as end caps for foaming molds. Main application models: 304,305 series.
Logistics Equipment Manufacturing Industry
1. For the welding of metal parts such as fork trucks and cabs, manual toggle clamps are used as fixtures for "welding jigs."
Main application models: 14412,11412,10247,12265 etc.
2. For the welding of metal parts of manual movers, platform trucks and stacking trucks, manual toggle clamps are used as fixtures for "welding jigs." Main application models: 114412,1412,203-F,225-D,101-H,101-E etc.
3. For the iron wire welding of cages and cage carriers, manual toggle clamps are used as fixtures and positioning bolts for "welding fixtures of the iron wire. Main application models: 203-F,201,302-F,101-A,304-C etc.
4. For the welding of racks, manual toggle clamps are used as positioning bolts and fixtures for forming and assembling "welding molds."
Main application models: 11412,225-D,203-F,302-F etc.
5. For the welding of metal parts of tool cabinets and mobile cabinets, manual toggle clamps are used as fixtures for "welding molds."
Main application models: 11412,225-D,203-F etc.
6. Barcode readers, scanners, printers.
| Q'TY PCS | 1-100 | 101-500 | 501-1000 | 1001-2000 | 2001-5000 | 5000+ |
| EST.DAYS | 1-3 | 3-5 | 5-7 | 7-15 | 15-25 | 25-35 |
| Brand | JOINTECH |
| Model | GH-14412 / 13412 |
| Bar Type | U Bar |
| Base Type | Flanged / Straight |
| Handle Type | Straight |
| Clamping Type | Vertical |
| Operation Type | Hold Down Quick Clamping |
| Standard / Non | Standard |
| Holding Force (LBS) | 600 |
| Spindle Standard | mm/inch |
| Surface Treatment | Zinc Plated; Tumbled; Polished;Black Oxide; |
| Finish | Silver; Natural; Red / Blue / Black / Orange Dipped Grip; |
| Design | OEM & ODM |
| Payment Term | T/T; L/C; Western Union; Visa; MoneyGram; Paypal; |
| Stock Status: (PCS) | 500 |
| Package Method | PE Bag; Inner and Master Carton; Each Master Carton is Less than 50lbs; |
| Pallet | Wooden / Fumigation / Plywood / Plastic / Aluminum Alloy; |
